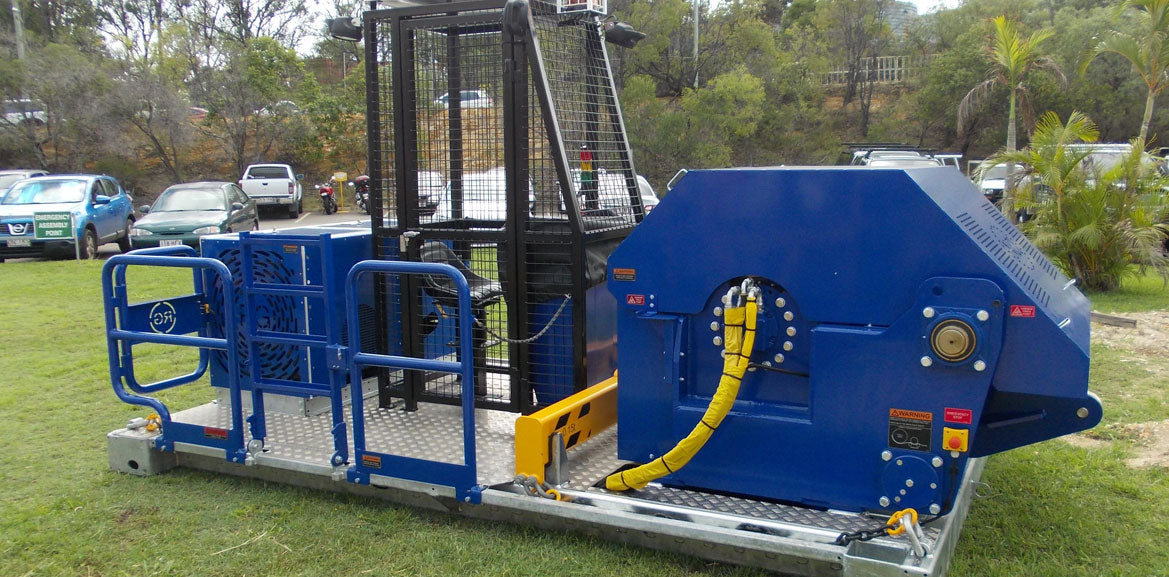

This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic loading holding valves and failsafe brakes enabling them to be safely used for hoisting. Winches have variable line speeds with high speed selection for fast retrieval and payout.

The winches are provided with an operator’s enclosure and operator’s seat. As standard, these winches are supplied with an Archimedes screw and fairlead arrangement to automatically layer rope evenly on the drum. The Archimedes screw is manufactured from stainless steel to maximise corrosion resistance.

Winches are provided with hot dip galvanised skid-mount that connects the power pack to the winch assembly. Skid-mounts come in two versions – one with container locks with standard 20 foot configuration and the other is of similar configuration but more compact design for weight saving.

The skid is provided with lift points at each corner and cross tubes for lifting with a forklift.

Parts Books & Operating Instructions

The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.

Change in Specification

Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its’ representatives.

Warranty

12 months parts and labour in accordance with guarantee and sales conditions.

Specifications

Winch

Options
