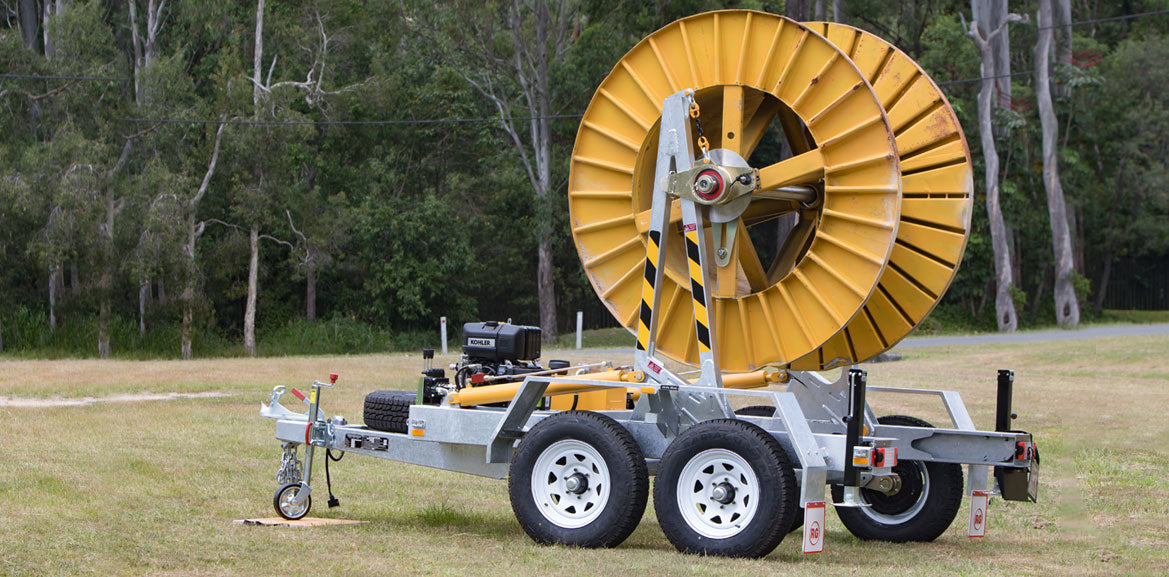

3.2 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain link to the spindle bearing carriers. This makes it possible to pick up drums that are not aligned to the trailer or are on uneven surfaces. All Redmond Gary Self Loading Cable Trailers incorporate this design feature. All trailers are designed for one man operation. Due to the mechanised design of the trailer, which includes manual jacklegs, hydraulic lift arms and drum rotator, trailers can be used for lifting drums rotating drums, etc. all by one person. All trailer spindles are high tensile hollow section, making them light enough to be a single person lift.
Trailers are of a rugged construction featuring hot dip galvanised frame and powder coated sheet metal components. All trailers are equipped with petrol engine and fully self contained power pack. Trailers are designed to comply with Australian Standards and Australian Design Rules. They can be registered in any state of Australia and New Zealand. A wide range of optional accessories are available.

The Self loading Cable Trailer is primarily designed for transporting drums of electrical power cable and paying out cable at the work site.

The unit has a number of features which improve productivity by permitting safe, one man handling of cable drums.

• The cable trailer need not be positioned accurately to pick up the load. Chains attached to the pickup arms provide the required flexibility.
• Hydraulic power is used to load the trailer and pay out cable at the work site.
• The Drum support shaft is manufactured from high tensile steel tube and can easily be fitted throught the cable drum by one person.
• The cable drum shaft rotates on low friction, weather resistant bearings.
• A drum rotator turns the drum to pay out or reel in.

Because the cable trailer has been designed for one man operation, use of the trailer can free personnel for other tasks or allow smaller work groups to maintain effective output. The principles of the Self Loading Cable trailers may be used in other applications including:

• Telephone and Optical Cable
• Irrigating Hose
• Newsprint Rolls
• Conveyor Belting
• Defence Equipment
• Seismic Line

• Max Load Mass: 3.2 Tonne
• Max Drum Diameter: 2800mm
• Max Drum Width: 1450mm
• Standard Spindle Diameter: 76mm
• Overall Length: 4155mm
• Overall Width: 2500mm
• Height Unladen: 2320mm
• Mass Unladen: 1200kg
• Standard Trailer Brake Type: Electric
• Engine: 7.5kW
• Transmission: Hydraulic

The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request a nominal cost.

Design and improvement of products is a continuous process. Therefore, we reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its representatives.

12 months parts and labour in accordance with guarantee and sales conditions.
