Sold Out

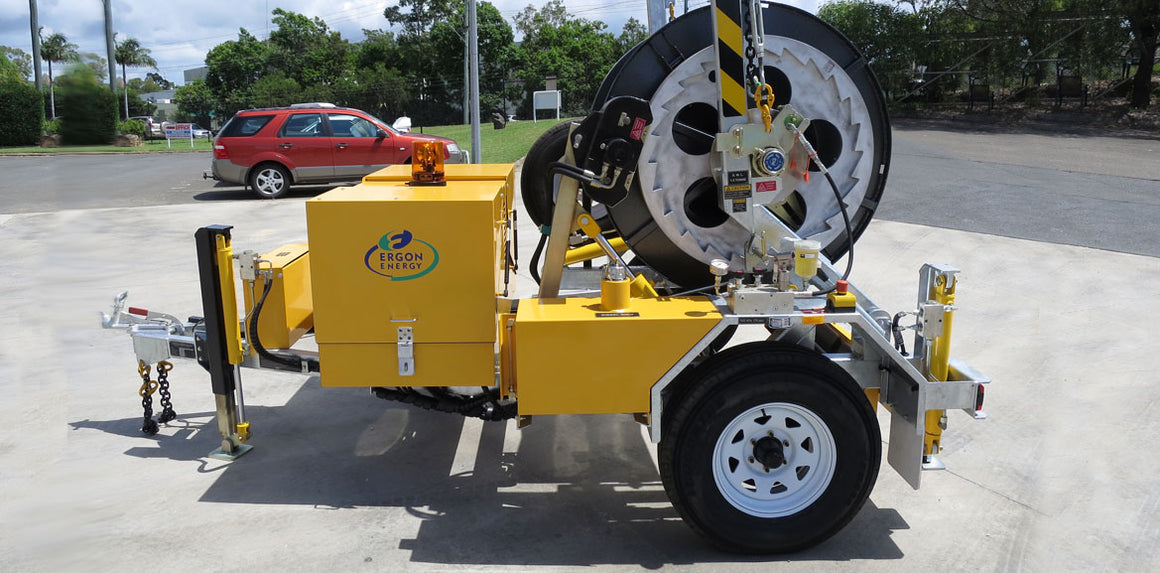

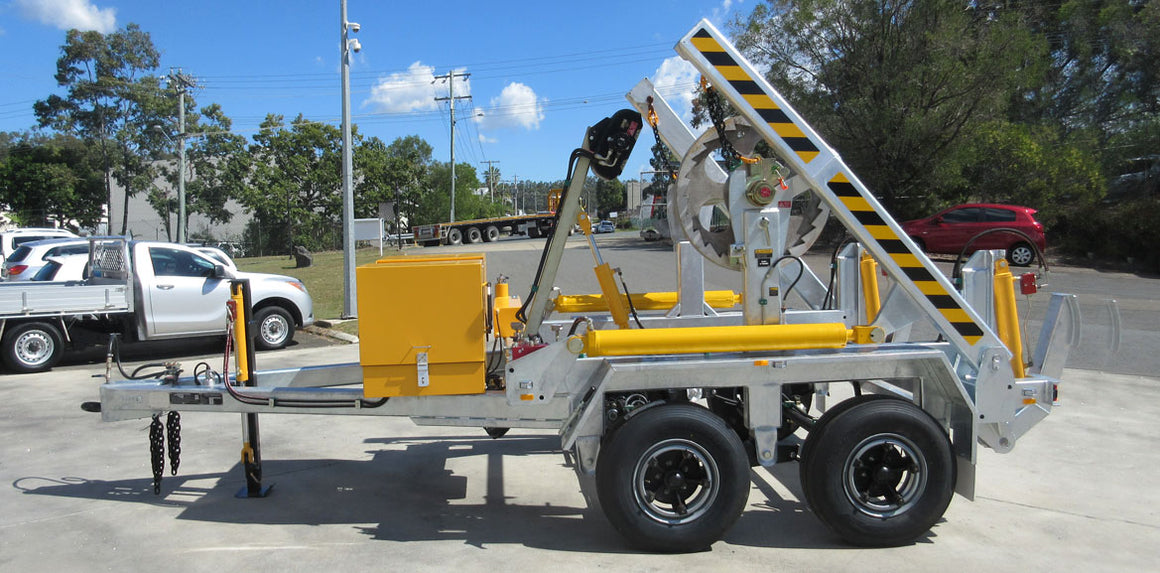

Description 1-Tonne Self Loading Cable Drum Trailer is a unique design with two vertical lift hydraulic cylinders and hand-pump control....
Sold Out
Description 1.5 Tonne self-loading cable drum trailer is a unique design which includes two independently controlled lifting arms and chain...
Sold Out

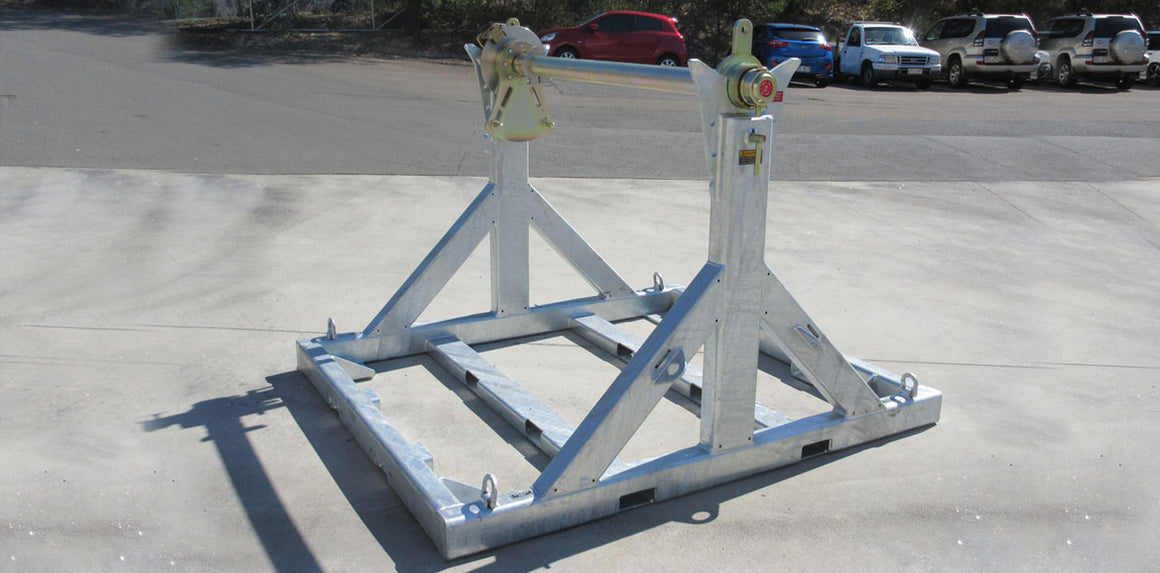

This drum stand has been designed specifically for ABC Cable and other types of cable with similar drum sizes. The...
Sold Out
Description The spindles are locked in place with the aid of pins and each spindle is provided with lifting lugs...
Sold Out
Description The spindles are locked in place with the aid of pins and each spindle is provided with lifting lugs...
Sold Out
Description 1.7 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain...
Sold Out

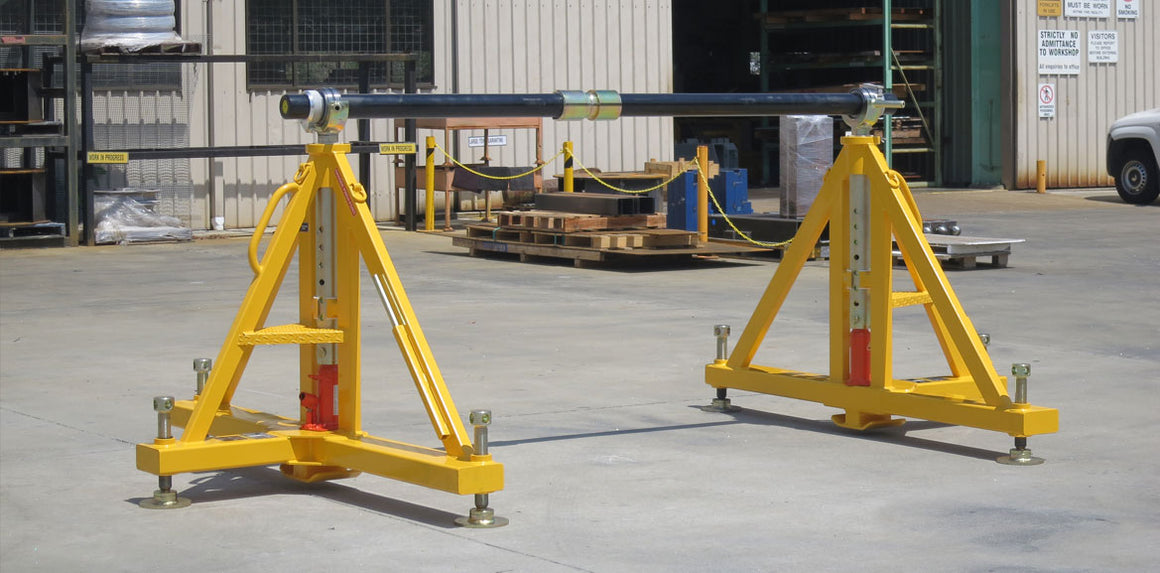

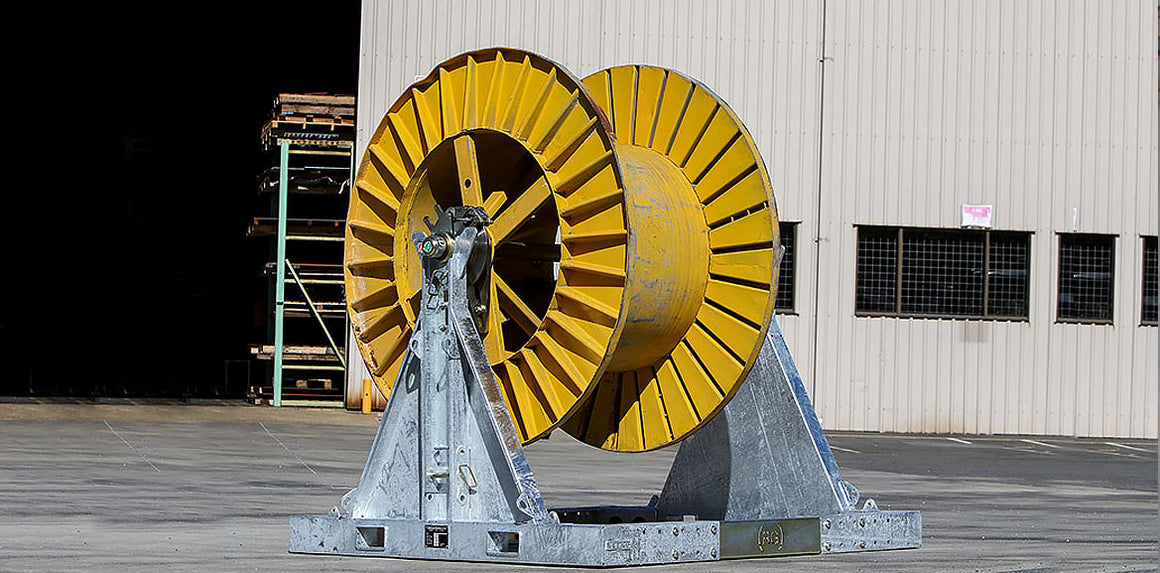

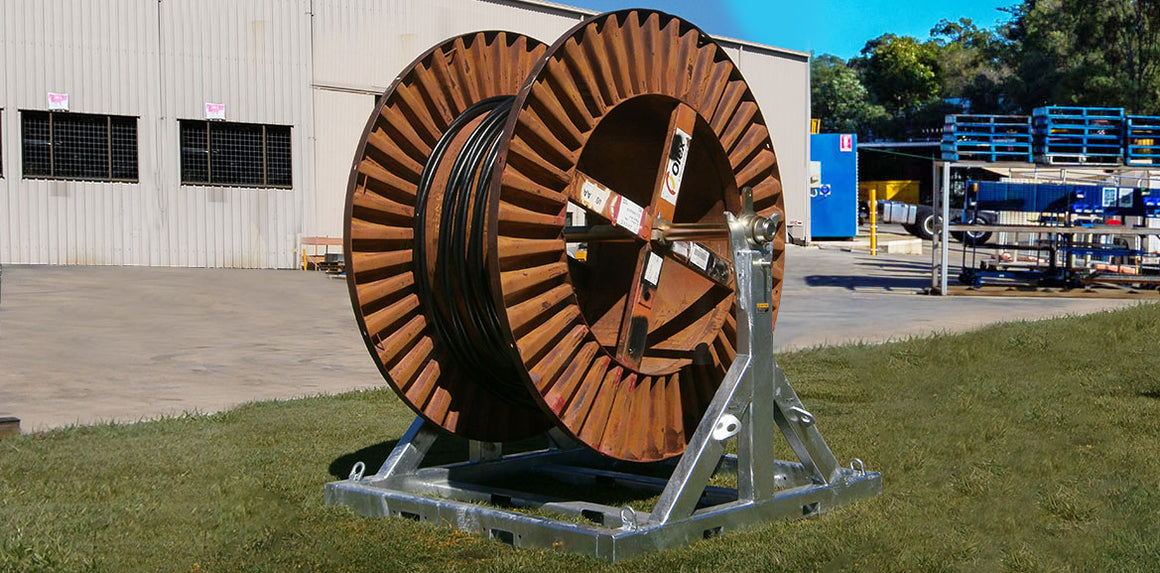

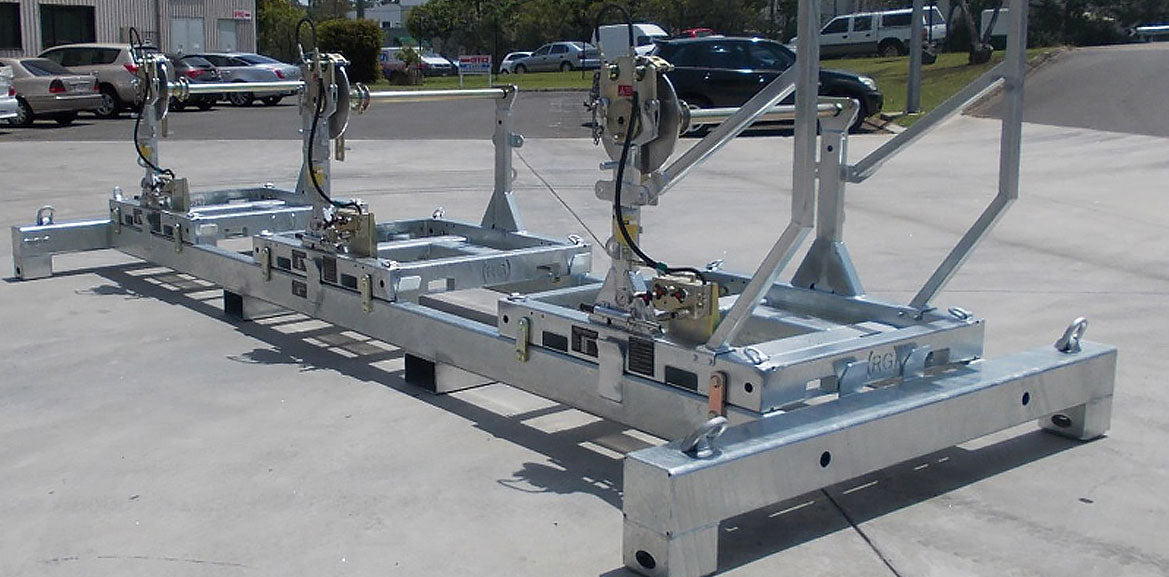

Description These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the...
Sold Out

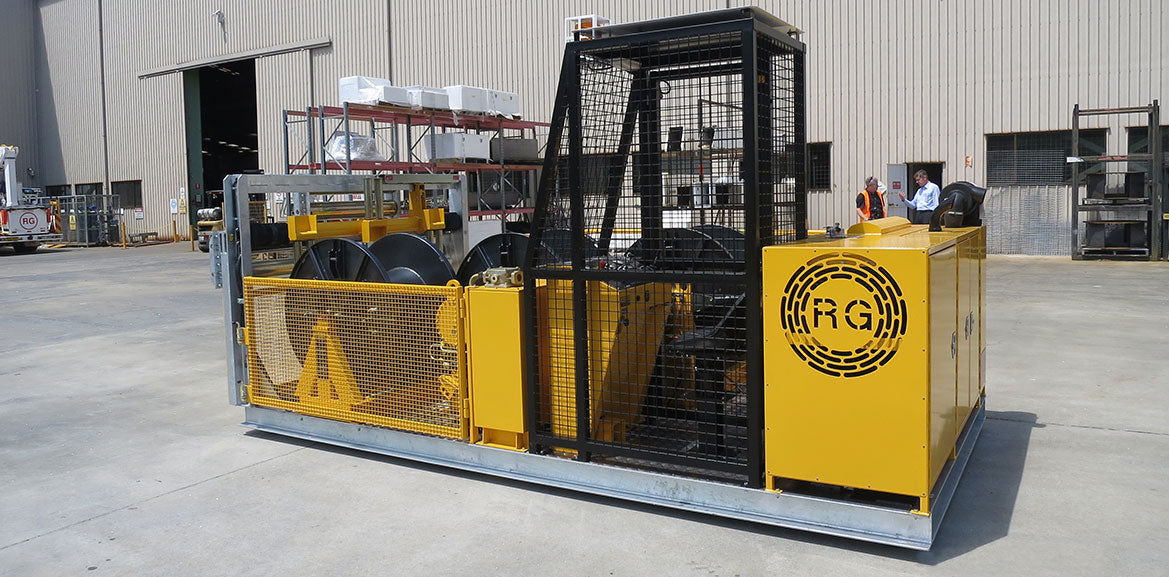

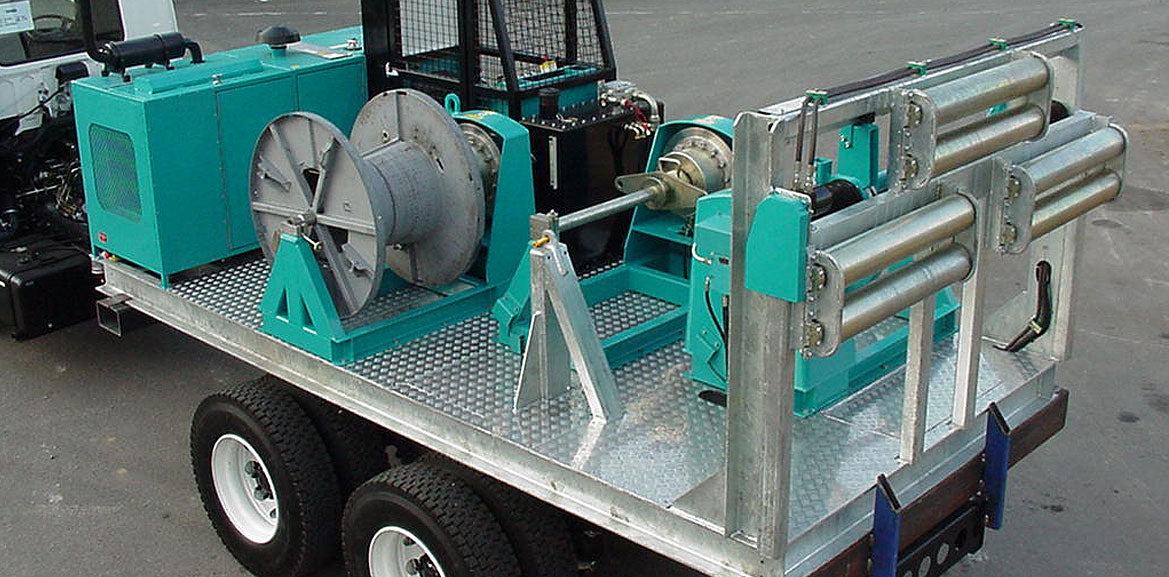

Description The 3-Drum recovery winch has been specially designed for pulling old overhead conductors onto a storage reel and at...
Sold Out
Description This winch is designed for general recovery work. The winches have variable line speed and are fitted with an...
Sold Out

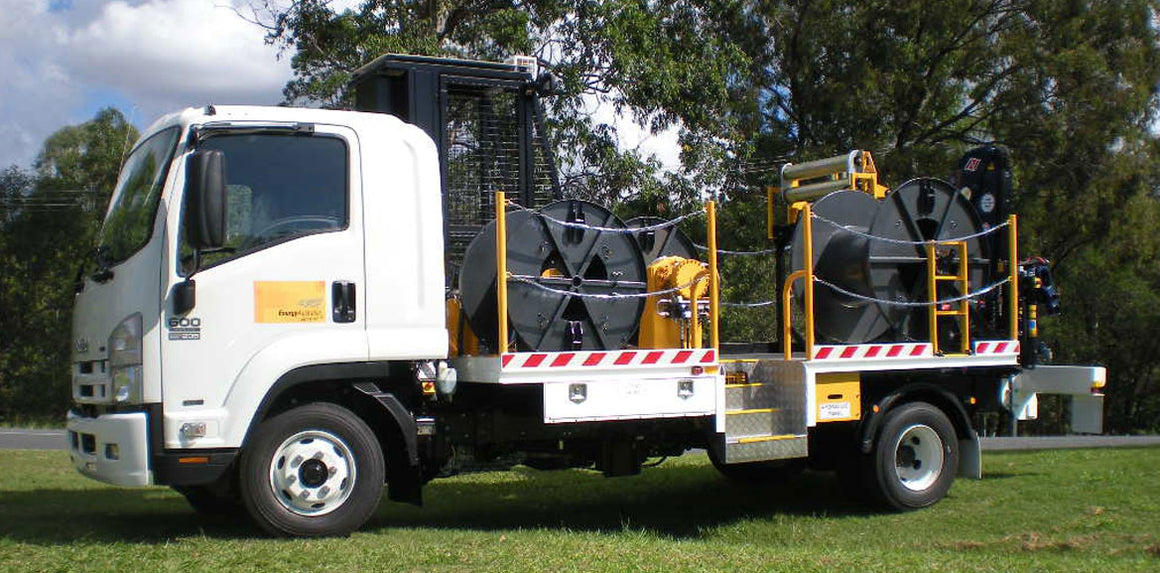

The 10kN Truck-Mounted recovery winch is designed for tension stringing of overhead cables in distribution networks. The truck is provided...
Sold Out

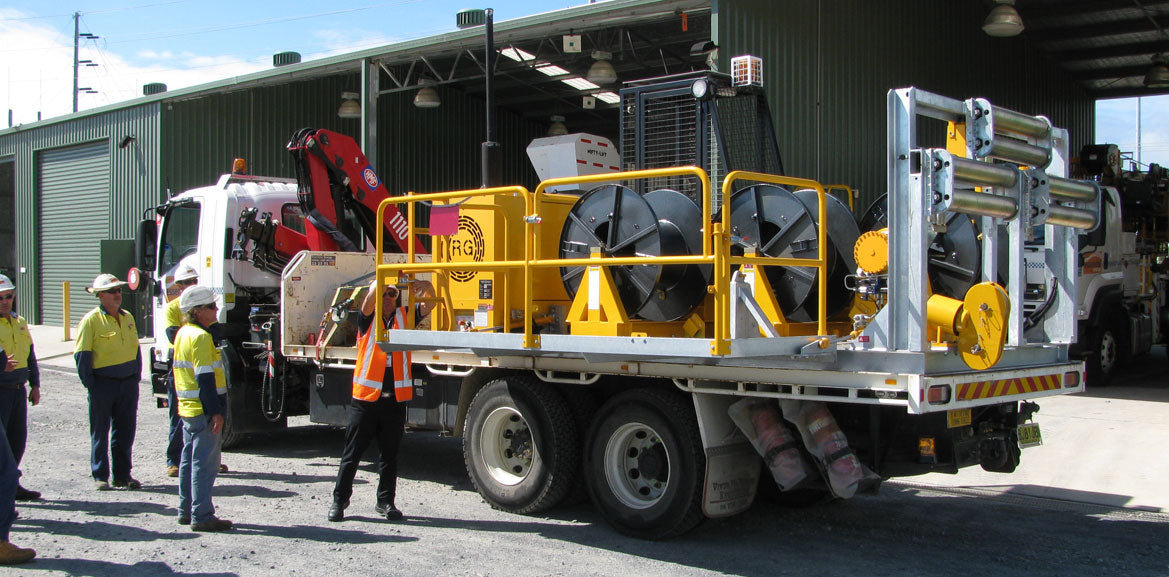

The dual-purpose 3-Drum recovery winch has been specially designed for pulling old overhead conductors onto a storage reel and at...
Sold Out

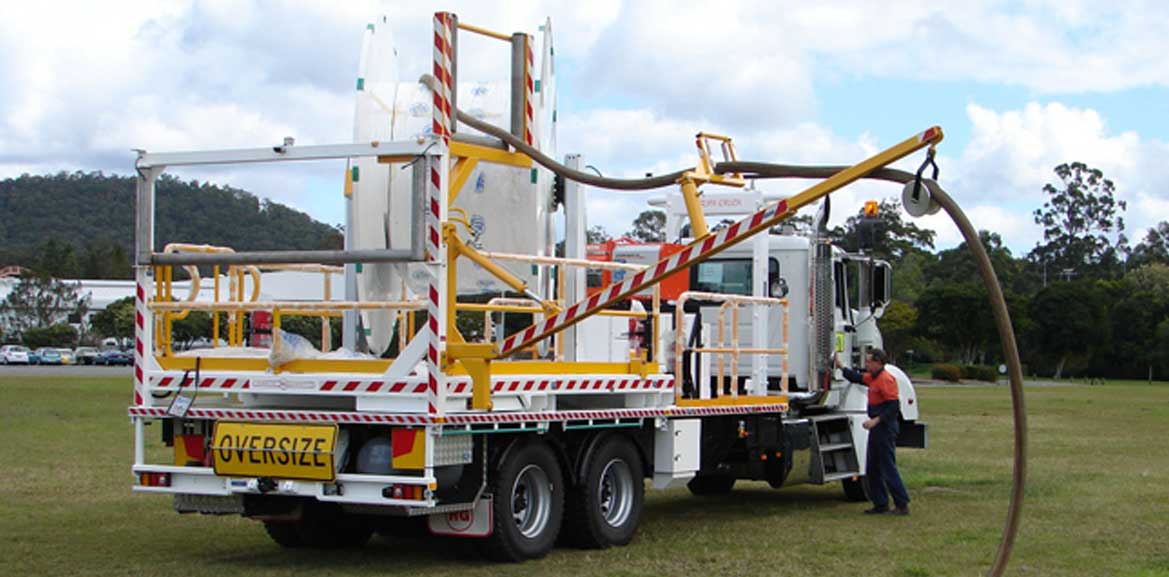

Equipment Purpose The unit was designed and built for the purpose of laying and retrieving trailing cables. Description This machine...
Sold Out
Description These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the...
Sold Out

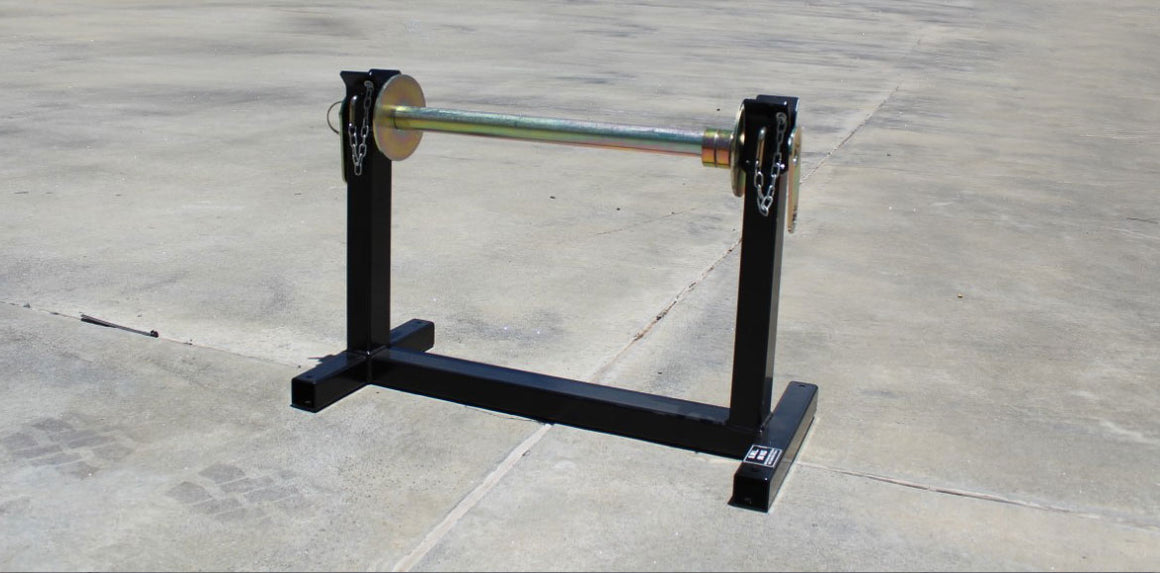

Small size drum stand is usually supplied as an accessory for mounting cable drums on the deck of an elevating...
Sold Out

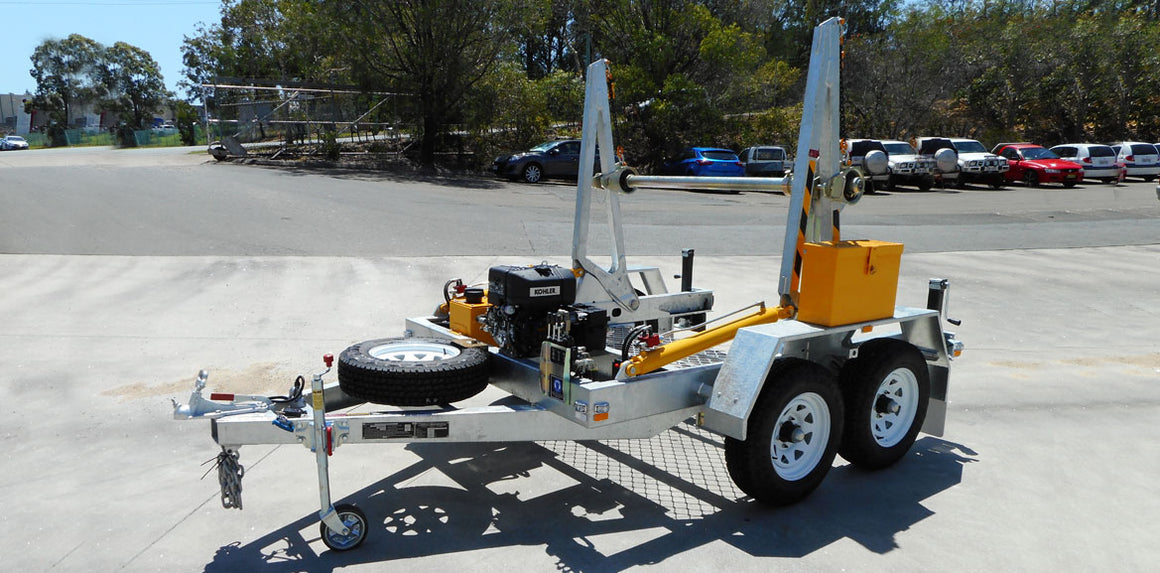

Description 2.5 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain...
Sold Out

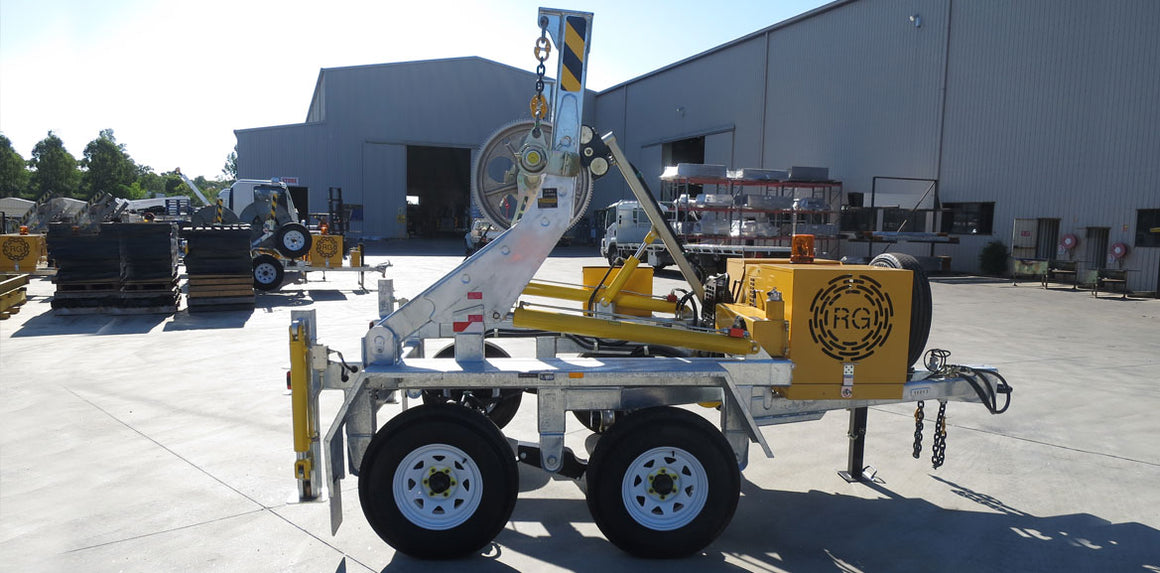

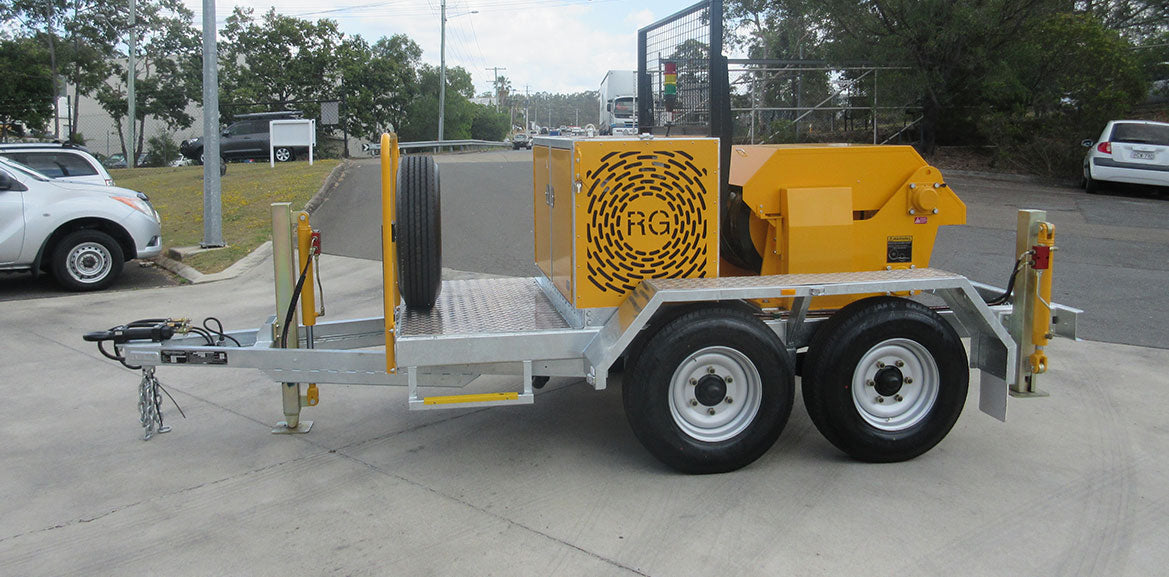

Description This trailer-mounted 20kN recovery winch can be used for a variety of applications. The winch is mounted onto a...
Sold Out
Description This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic load...
Sold Out
Description The 3-Drum recovery winch has been specially designed for pulling old overhead conductors onto a storage reel and at...
Sold Out

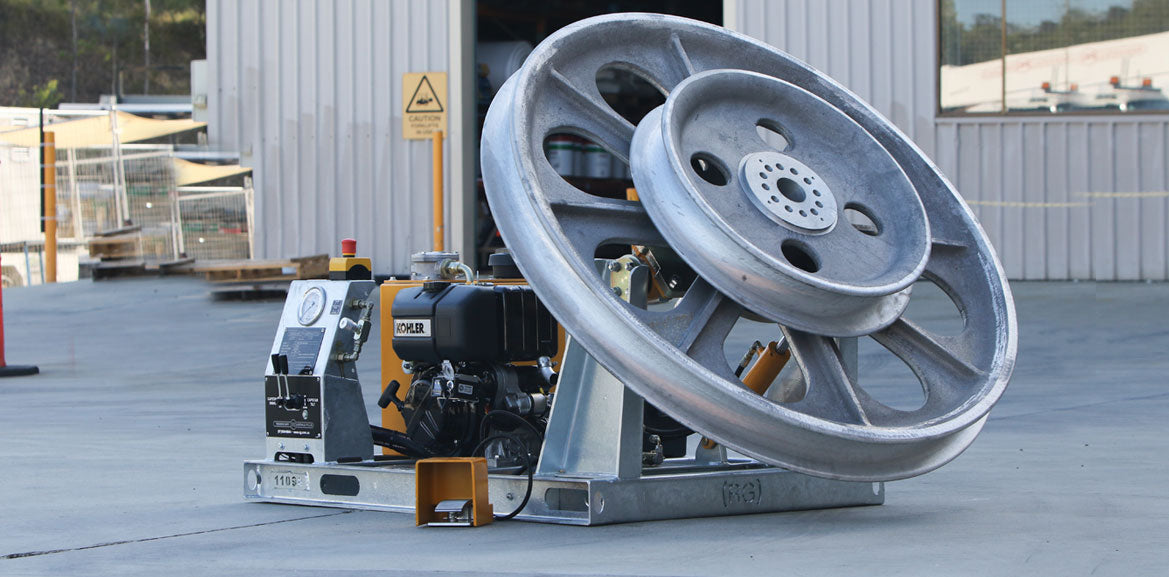

Description The2kN Fibre Optic winch is used for pulling fibre optic cable by wrapping the cable directly onto a large...
Sold Out
Description These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the...
Sold Out

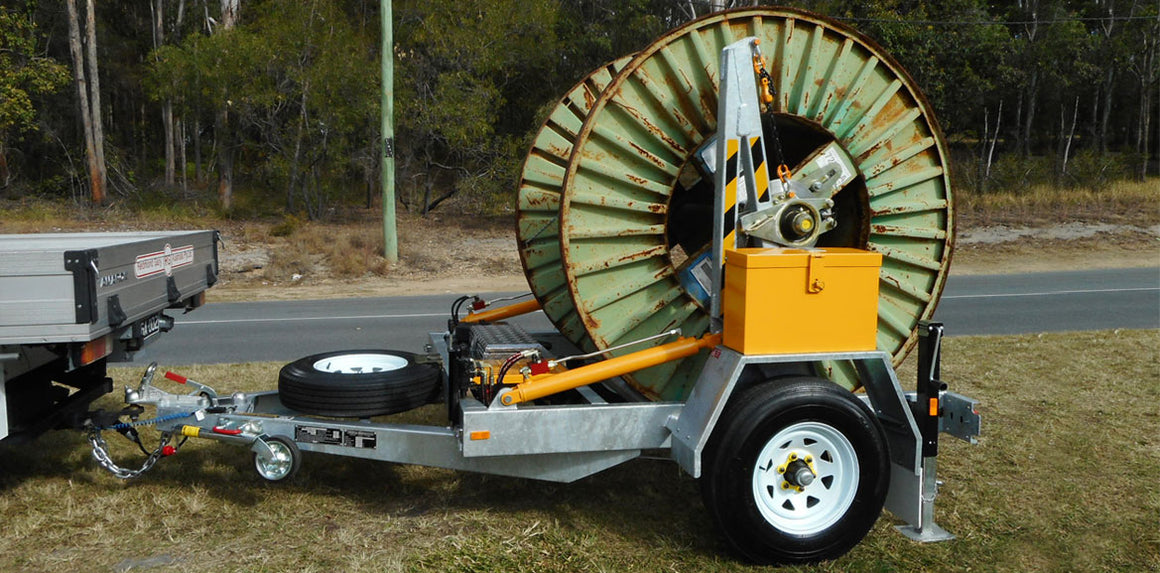

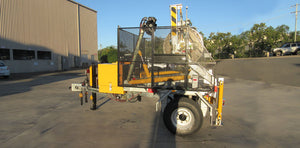

Description 3 Tonne self-loading cable drum trailer is a unique design which includes two independently controlled lifting arms and chain...
Sold Out
Description 3.2 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain...
Sold Out
Description 3.5 Tonne Self Loading Cable Trailer is a unique design which includes two independently controlled lift arms and chain...
Sold Out
Parts Books & Operating Instructions The equipment is supplied with one copy of an operation manual which includes operating instructions,...
Sold Out
Description The special A-Frame design using aircraft jacks makes it possible to carry heavy drums of cable up to 30,000kg...
Sold Out

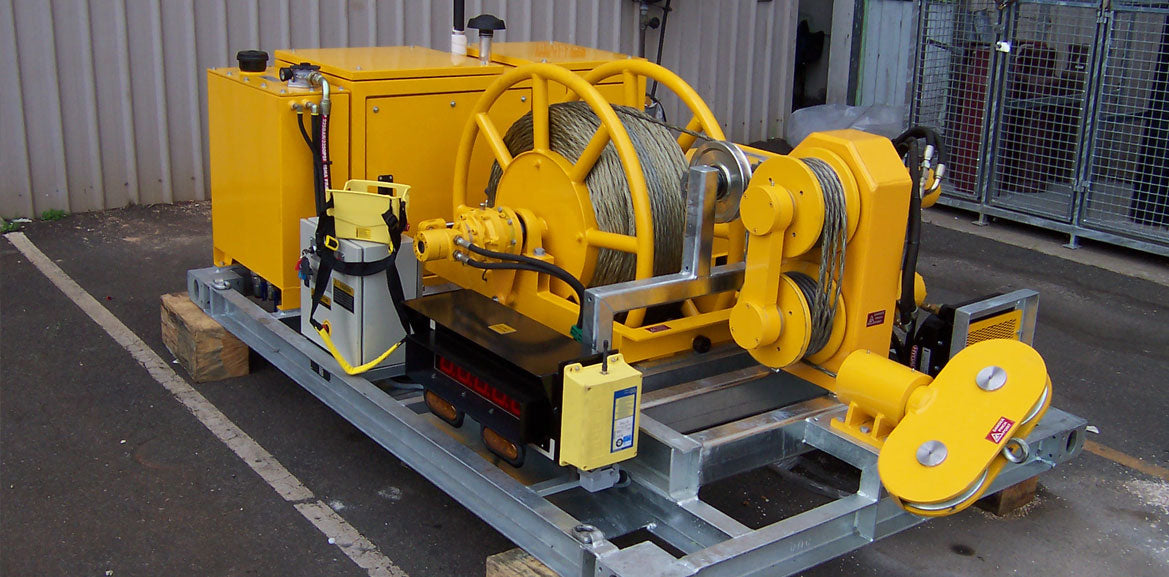

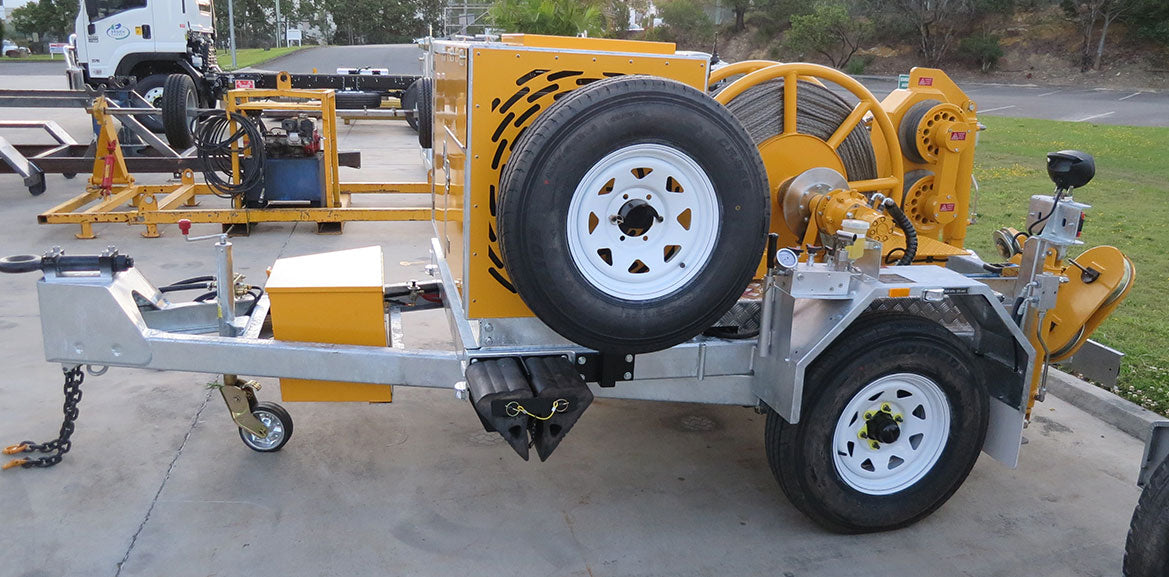

Description These winches are specifically designed to haul cable through ducts and use a double bull-wheel configuration with storage reel....
Sold Out
Description These winches are specifically designed to haul cable through ducts and use a double bull-wheel configuration with storage reel....
Sold Out
These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the back...
Sold Out
Description These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the...
Sold Out
Description This trailer-mounted 40kN trailer-mounted recovery winch can be used for a variety of applications. The winch is mounted onto...
Sold Out
Description This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic load...
Sold Out

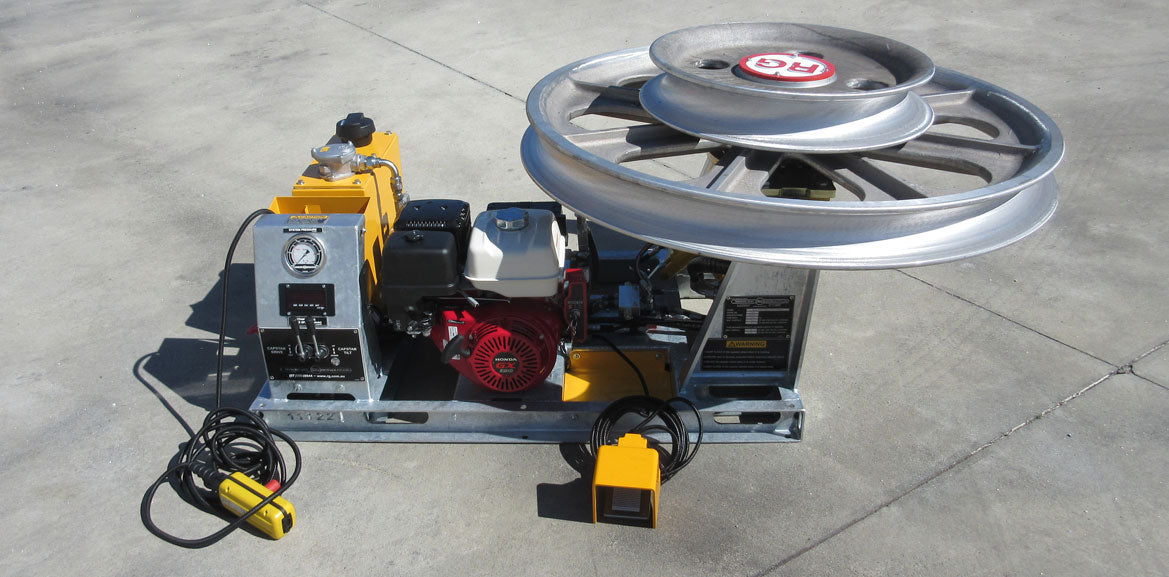

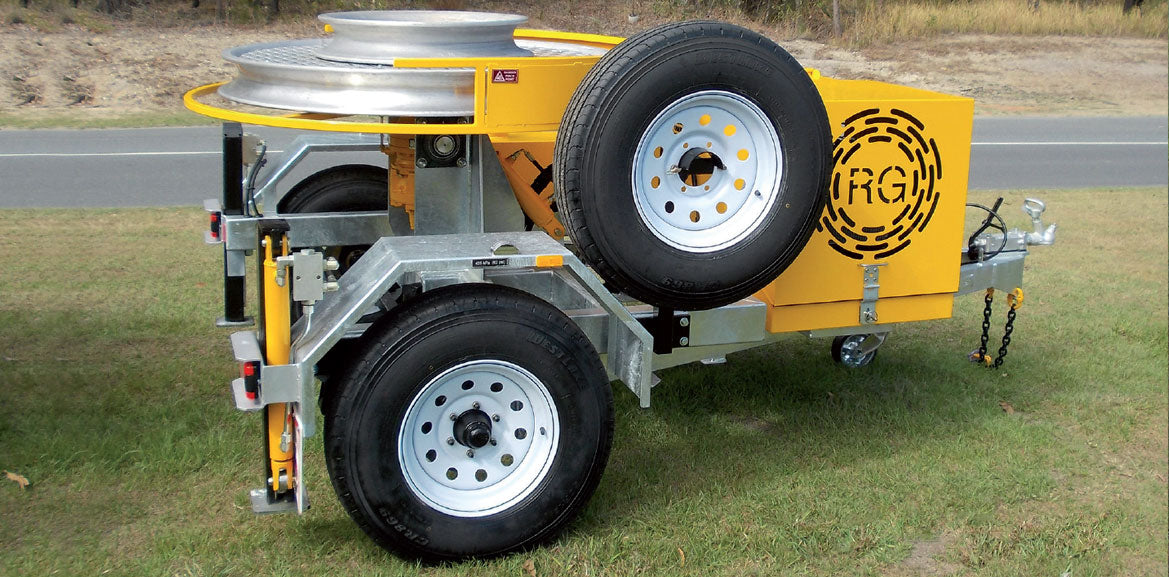

Description The 5kN Fibre Optic winch is used for pulling fibre optic cable by wrapping the cable directly onto a...
Sold Out

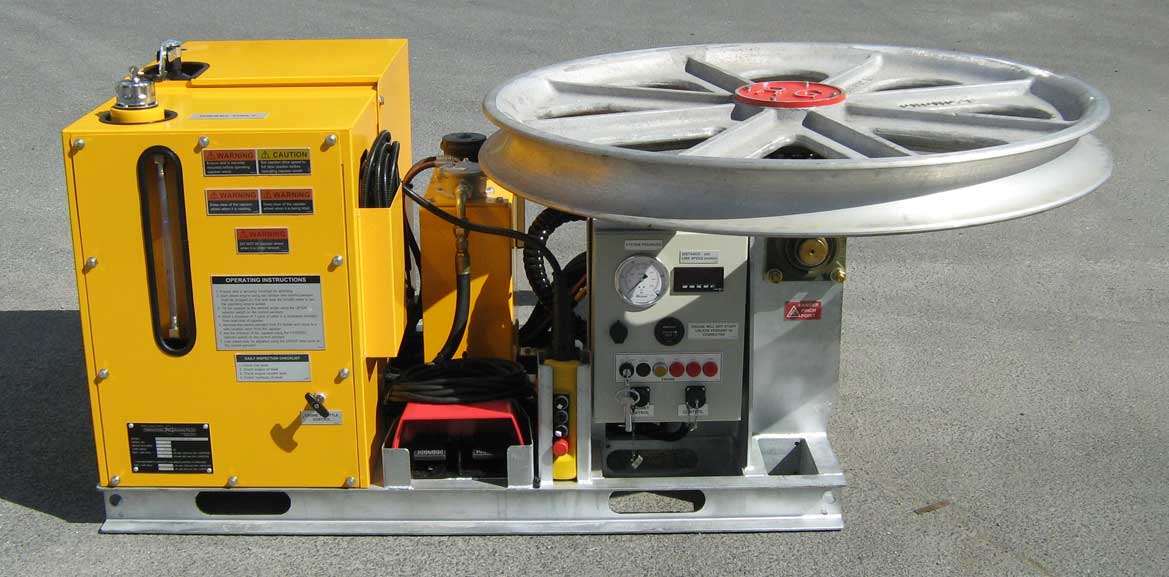

Description The 5kN Fibre Optic winch is used for pulling fibre optic cable by wrapping the cable directly onto a...
Sold Out
Description The 5kN Fibre Optic winch is used for pulling fibre optic cable by wrapping the cable directly onto a...
Sold Out
Description Fixed base drum stand is for use inside a workshop and the frame is bolted to the floor. Large...
Sold Out
Description These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the...
Sold Out
Description 6-Tonne self-loading cable drum trailer is a unique design which includes two independently controlled lifting arms and chain link...
Sold Out
This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic loading holding...
Sold Out

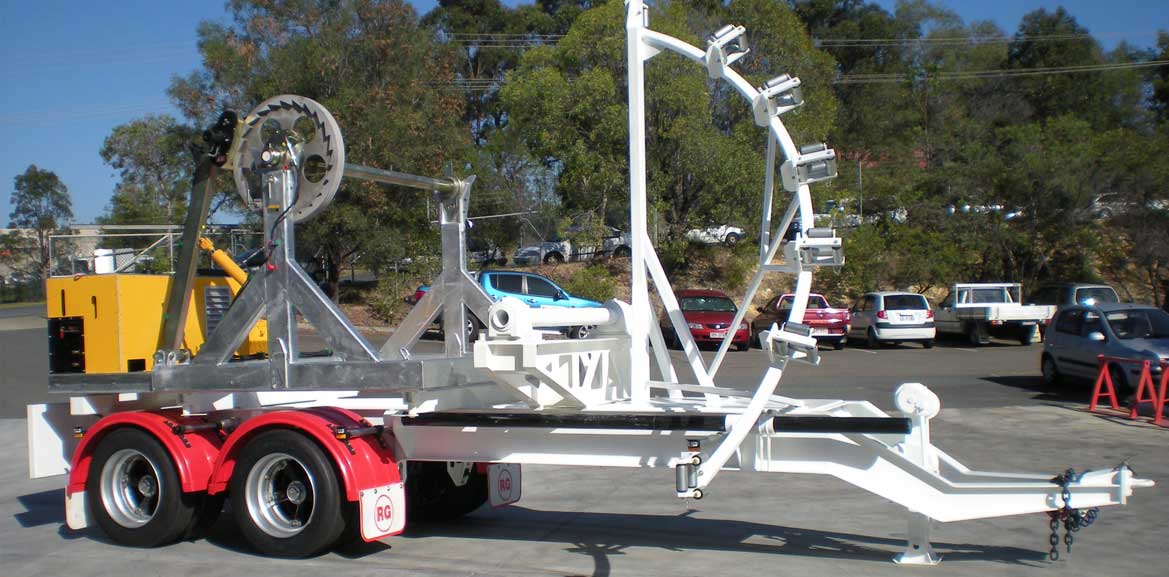

Description Trailers can carry a maximum weight of 20,000kg. They can accommodate either 8-Tonne, 10-Tonne, 14-Tonne Drum Stands. The Drum...
Sold Out

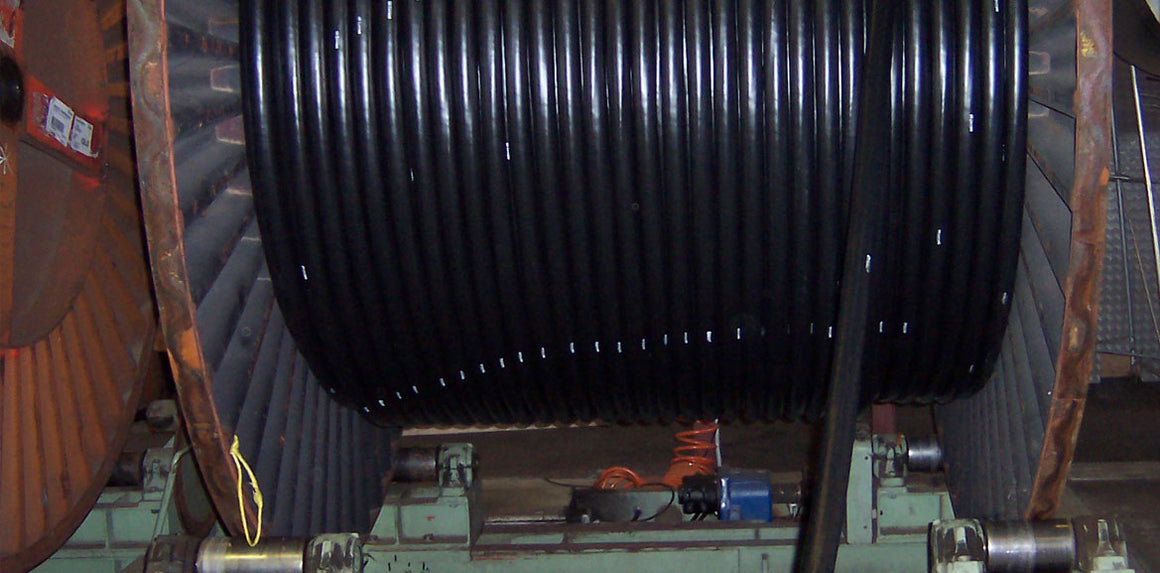

This stand is used in conjunction with Cable Cut-to-Length system. Steel drums are placed on the roller stand and the...
Sold Out
These robust hot dip galvanized cable drum stands are designed to be placed on the ground or on the back...
Sold Out

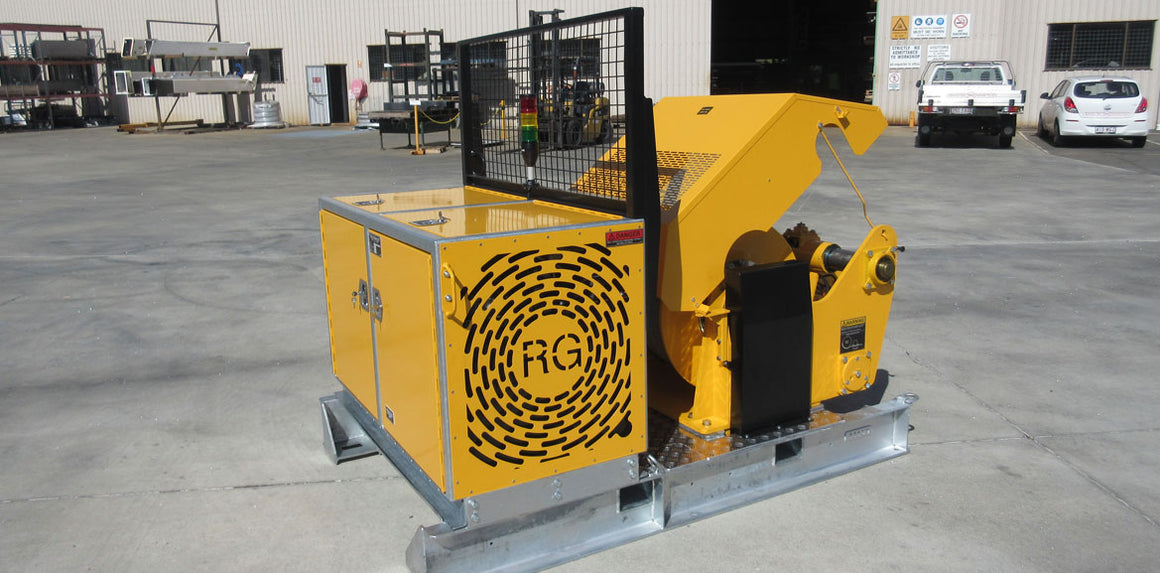

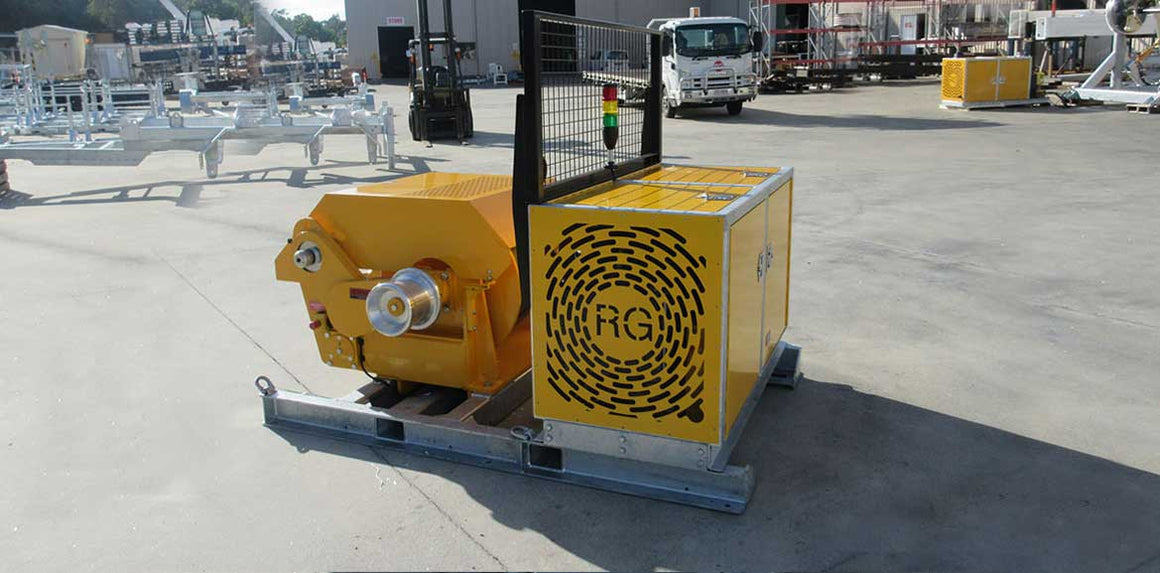

Skid mounted 80kN Recovery Winch is provided with container locks with standard dimensions to suit a 20 foot shipping container....
Sold Out
Description The trailer could be supplied with diesel/petrol engine to drive the hydraulic power unit if required. The hydraulic power...
Sold Out
Description 1. Series A. The trailer/drum-stand combination style. With this unit the trailer frame is an integral part of the TWO...
Sold Out

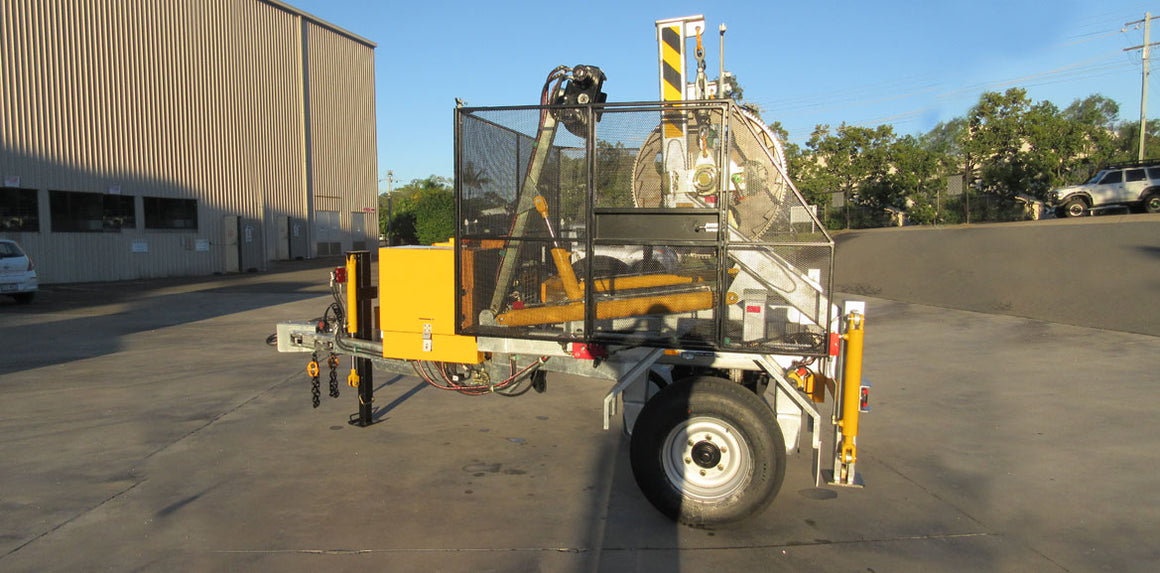

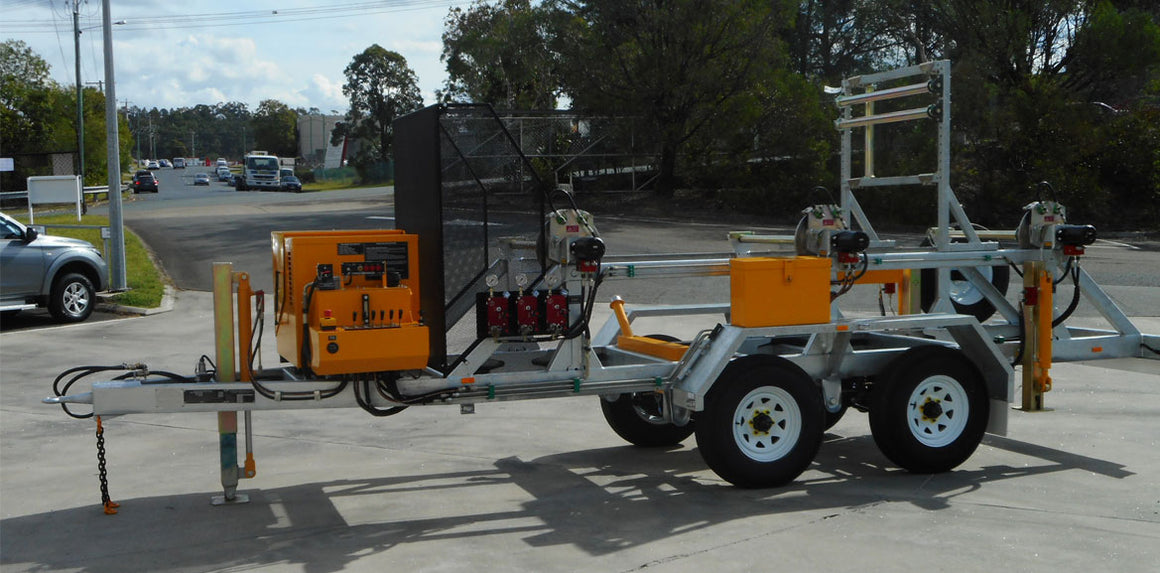

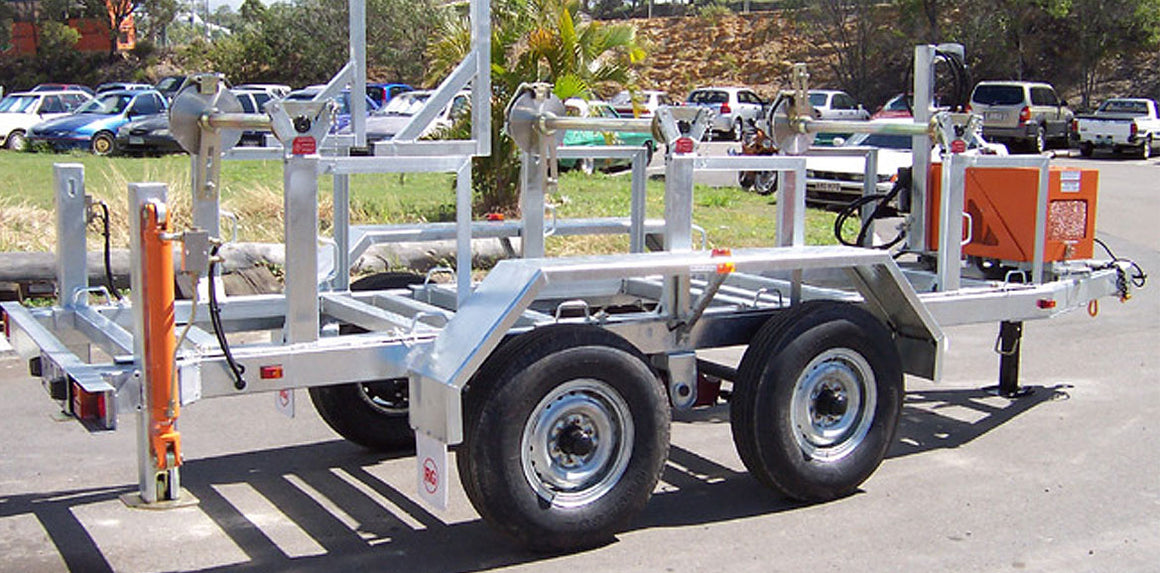

Description 3-Drum ABC (Aerial Bundle Cable) Trailer is a modular design and is designed for one-man operation. Due to the...
Sold Out
Description The 4-Drum ABC (Aerial Bundle Cable) Trailer is supplied with diesel engine to drive the hydraulic power unit and...
Sold Out

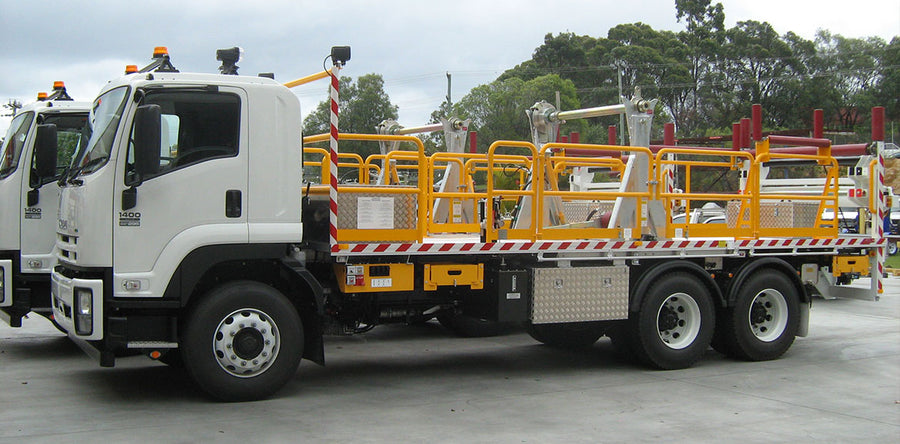

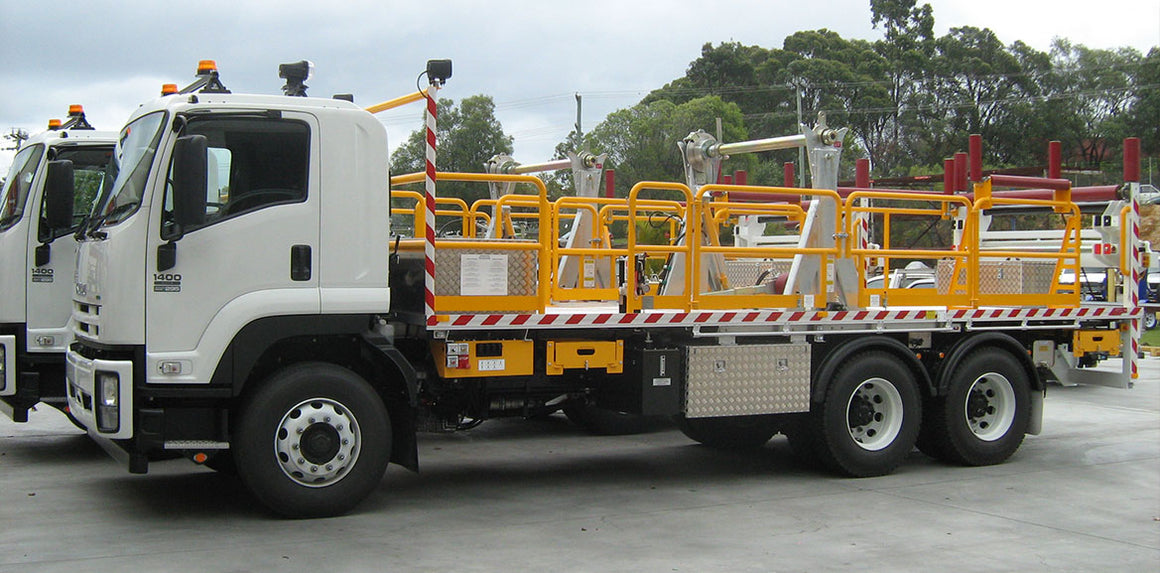

Description The cable drum transporter is designed to carry heavy drums for underground cable installations. Cable Drum Transporter – General...
Sold Out
The 20kN bottom-mount version is designed to grip cable from 50 –140mm in diameter and push (or pull) it by driving it through two caterpillar tracks that grip the wall of the cable with rubber shoes. Using an electrical control pendant, the operator has full remote control of the pusher. This pendant is connected to the unit by 5 metres of cable allowing the operator to observe and control the cable pusher from an optimum vantage point. All parameters of the pusher are adjustable to give the machine the largest possible envelope, maximise its versatility and ensure that cables are not damaged through bruising or buckling.
These machines are designed to couple directly to a hydraulic power pack or similar hydraulic power source. All control circuits etc are incorporated into the pusher unit. The only connections to the machine are hydraulic power in and out (200 bar 23 litres/minute) and electrical power (30W, 12V DC, 3 amp).
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its’ representatives.
12 months parts and labour in accordance with guarantee and sales conditions.
| Diesel Engine | Kubota D902 – 15 kW @ 3600 rpm |
| Fuel Tank Capacity | 40 L |
| Engine Oil | Shell Rimula |
| Hydraulic Oil | Castrol Hyspin AWH 46 |
| Hydraulic Fluid Reservoir Capacity | 90 Litres |
| Run time/tank | 8 -9 hrs dependant on workload |
| Hydraulic Load Sense Piston Pump | 25 L/min |
| Maximum System Pressure | 240 bar (3500 psi) |
| Hydraulic Power unit Mass | 482 kg |
| Frame Footprint | Fits into 1000 mm trench |
| Cable Pusher Unit Overall Dimensions (LxWxH) | 1535mm x 940mm x 534mm |
| Push or Pull | Machine is capable of pushing, pulling or pushing and pulling. |
| Clamping pressure | User adjustable. Clamping pressure and pull/push force displayed on gauges. |
| Maximum Cable Push Force (at reduced line speed) | 20kN (2000kg) |
| Maximum Line Speed (at reduced push force) | 25 m/min |
| Line cable speed and distance display | On pendant |
| Capstan Pull | Capstan enables polypropylene rope to be winched |
| Maximum Capstan Winch Line Pull Force | 16 kN (1600 kg) |
| Maximum Capstan Winch Line Pull Speed | 23 m/min |
| Adjustable Jaws, Cable Capacity. | 50 to 140 mm cables |
| Cable Pusher Mass | 420 kg |
