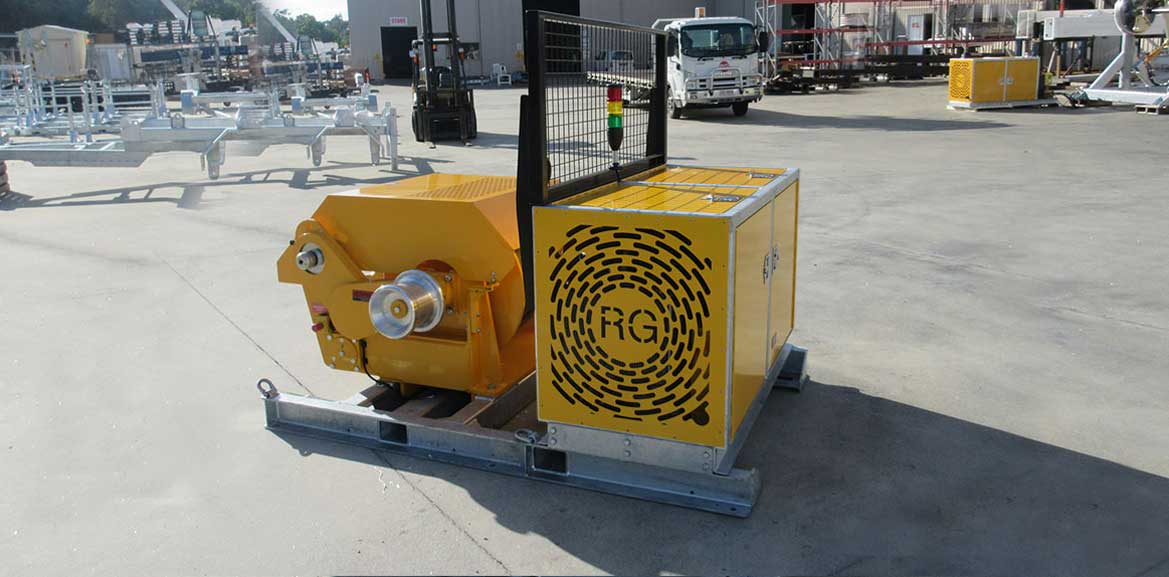

This winch series is designed for general cable hauling and recovery work. These winches are fitted with hydraulic load holding valves and failsafe brakes enabling them to safely be used for hoisting. The winches have variable line speeds with a high-speed selection for faster retrieval and payout.
Winches are provided with hot dip galvanised skid-mount that connects the power pack to the winch assembly. The skid is provided with container lock location points, one on each corner. Winches can be easily lifted using a forklift or a crane. Lifting points are provided on each corner.
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its’ representatives.
12 months parts and labour in accordance with guarantee and sales conditions.
| Winch Line pull at top layer | 40kN |
| Rope Capacity | 16mm 500 metres Rope not included |
| Winch Speed: Normal |
12 m/minute @ 40kN – 4000kg |
| Winch Speed: High Speed | 24 m/minute @ 20kN – 2000kg |
| Power Pack | 17.5kW |
| Engine type | Diesel – electric start |
| Hydraulic oil reservoir | 58 Litres with 12 Volt oil cooler |
| Diesel tank | 32 litres |
| Total weight | 2010kg |
| Overall length | 2500mm |
| Overall Width | 1585mm |
| Overall Height | 1780mm |
| Full Drum | 650mm – 40kN (4000kg) |
| Empty Drum | 80kN (8000kg) |
| Tension Line pull | 40kN (4000kg) constant at low speed |
| Line Speed | 2-Speed auto change via hydraulic motor |
| – High speed full drum | 24 m/min – 20kN (2000kg) |
| – Low Speed full drum | 12m/min – 40kN (4000kg) |
| Rope | 16mm 500 metres Rope Not included. |
Sold Out
Ball bearing swivels Click to download the product details in PDF Pulling grips Click to download the product details in...
Sold Out

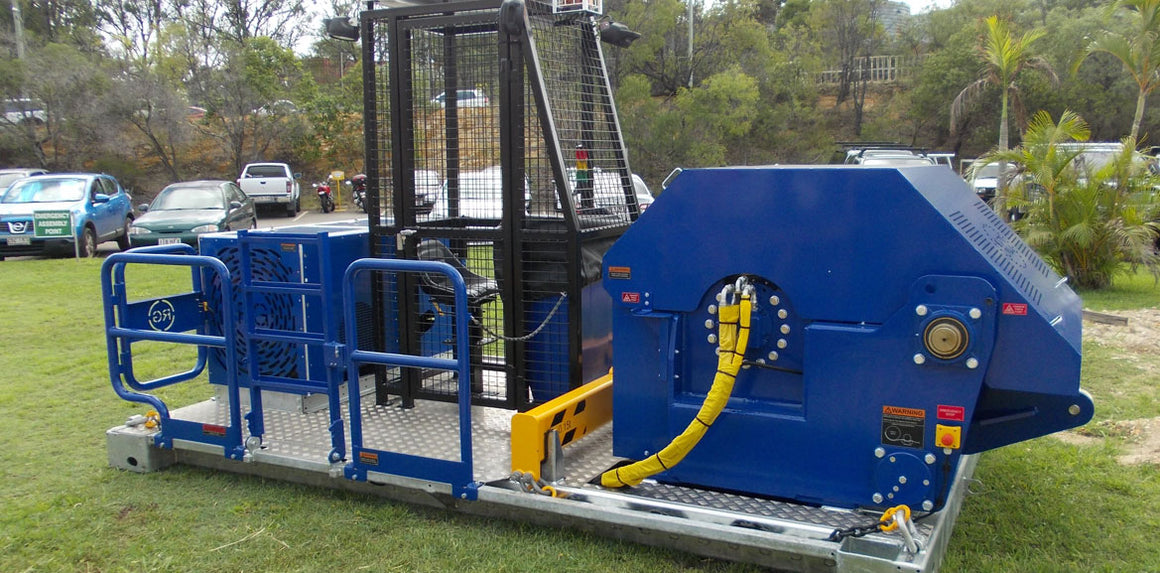

Skid mounted 80kN Recovery Winch is provided with container locks with standard dimensions to suit a 20 foot shipping container....
