Description
1. Series A. The trailer/drum-stand combination style. With this unit the trailer frame is an integral part of the TWO drum stands with the upright drum supports directly attached (welded) to the trailer frame.
2. Series B. The trailer with separate removable drum modules. Each of the TWO drum supports is an individual unit which may be detached from the trailer frame.
The trailer could be supplied with petrol engine to drive the hydraulic power unit if required. The trailer has the capacity to carry ONE, 1600mm diameter drum, or TWO, 1400mm diameter drums. Maximum drum width 900mm.
Each drum stand is fitted with a removable centre drum spindle and disc brake assembly which enables the operational crew to establish a line pull of up to 150kgs at 1000mm diameter.

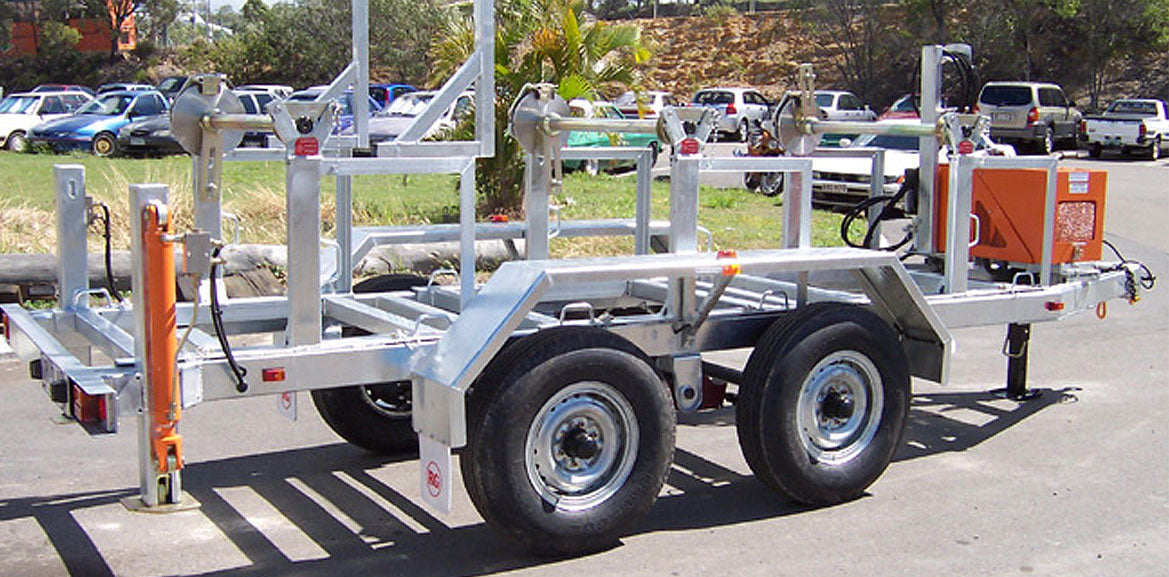

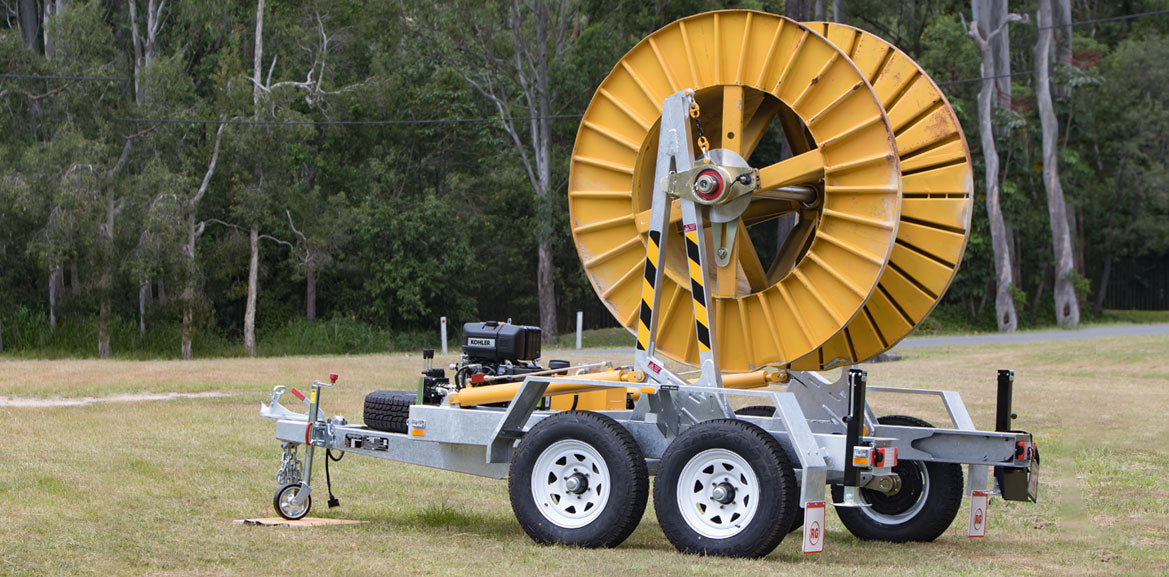

Specifications for Series B – 2-Drum ABC Trailer
- Max Drum Mass: 1.3 Tonne
- Max Drum Diameter:1200 mm
- Max Drum Width: 900 mm
- Standard Spindle Diameter: 54 mm
- Overall Length: 5670 mm
- Overall Width: 1820 mm
- Height Loaded (with roller guide stand): 2650 mm
- Height Unladen (with roller guide stand): 2650 mm
- Mass Unladen: 1350 kg
- Mass Fully Laden (max): 3200 kg
- Standard Trailer Brake Type Electric
Change in Specification
Design and improvement of products is a continuous process. We, therefore, reserve the right to make design improvements differing from this specification after receipt of an order. However, any major changes will only be made with the approval of the customer or its representatives.
Specifications for Series B – 2-Drum ABC Trailer
- Trailer frame finished in hot dip galvanising
- Operational controls housed in cabinet located on kerb side of the trailer
- Engine Cabinet manufactured from 1.6mm zinc anneal sheeting finished with powder coating – all seams and edges are sandblasted, primed prior to powder coating
- All tanks and hydraulic cylinders finished in 2 pack enamel
- ADR approved single axle with Electric Brakes (Note: "S" cam air brakes are required for trailers carrying drums heavier than 1 Tonne.
- Landcruiser Radial Rims, with 7.5 x 16 tyres
- Wind Down Front Jackleg/Stabiliser
- Two Wind Down Rear Jackleg/Stabilisers
- Tow Eye Type – 75mm Ring Type Swivel Tow Coupling
- Coupling Height – 600 mm
- Pinlock Endlink Chain Ends
- 10 hour Fuel Tank
- LED Lights
- Safety and Operational Signage – Screen Printed Anodised Aluminium
- Final Coat Finish. Powder Coating and 2 pack Enamel. Yellow, Interpon, Safety Yellow, Product Code ME096A
- All electrics 12 volt
- One set of Operational Manuals
Parts Books & Operating Instructions
The equipment is supplied with one copy of an operation manual which includes operating instructions, safety information, major assembly drawings, hydraulic and electrical schematics (if applicable), etc. Additional copies are available upon request at nominal cost.
Warranty
12 months parts and labour in accordance with guarantee and sales conditions.
Standard Features
- Trailer frame finished in hot dip galvanised
- Operational controls mounted on kerb side of the trailer
- Engine Cabinet manufactured from 1.6mm zinc anneal sheeting finished with powder coating – all seams and edges are sandblasted, primed prior to powder coating
- All tanks and hydraulic cylinders finished in 2-pack enamel
- ADR approved axles and brakes
- Landcruiser Radial Rims, with 7.5 x 16 tyres
- Wind Down Front Jackleg/Stabiliser
- 2 x Wind Down rear Jackleg/Stablilisers
- Tow Eye Type – 75mm Ring Type Swivel Tow Coupling
- Coupling Height – 600 mm
- Pin-lock End-link Chain Ends
- 10-Hour Fuel Tank
- LED lights
- Safety and Operational signage – Screen Printed Anodised Aluminium
- Final Coat Finish:
- Powder Coating and 2 pack Enamel
- Yellow, Interpon, Safety Yellow, Product Code ME096A
- All electrics 12 Volt
- One set of operation manuals
Options
- Additional removable drum stand module complete with removable 54mm spindle and disc brake assembly. (view image )
- One Light weight overhead roller guide stand with one set rollers, For single cable guide.
- Two Light weight overhead roller guide stands. (One stands with two sets rollers, One stand with one set of rollers)
- Hydraulic rear jacklegs for trailer if hydraulic powerunit option is selected
- Hydraulic power unit complete with 6HP petrol Engine
- 6. Hydraulic power unit complete with 20HP petrol Engine (Suitable for use with up to TWO spindle drives motors operating simultaneously.)
- Hydraulic motor, valving circuit and hoses to be used in conjunction with power pack (Price per drive unit)
- ‘S’ Cam Air Brakes (Required for all trailers where drum mass exceeds 1 Tonne.)
- Rotating amber light
- Set of 4 wheel Chocks Trelliborg, Qld Rubber and holder
- Emergency stop (engine)
- Set of 3 Emergency triangle (Navara ME41) with high visibility vest
- Spare wheel, Landcruiser 16inch
- Coupling Height – 550 mm
- Coupling Height – 650 mm
- Coupling Height – 700 mm
- Tow Eye Type – Ring Type 75mm Fixed
- Tow Eye Type – PIN Type 50mm
- Tow Eye Type – PIN Type 40mm
